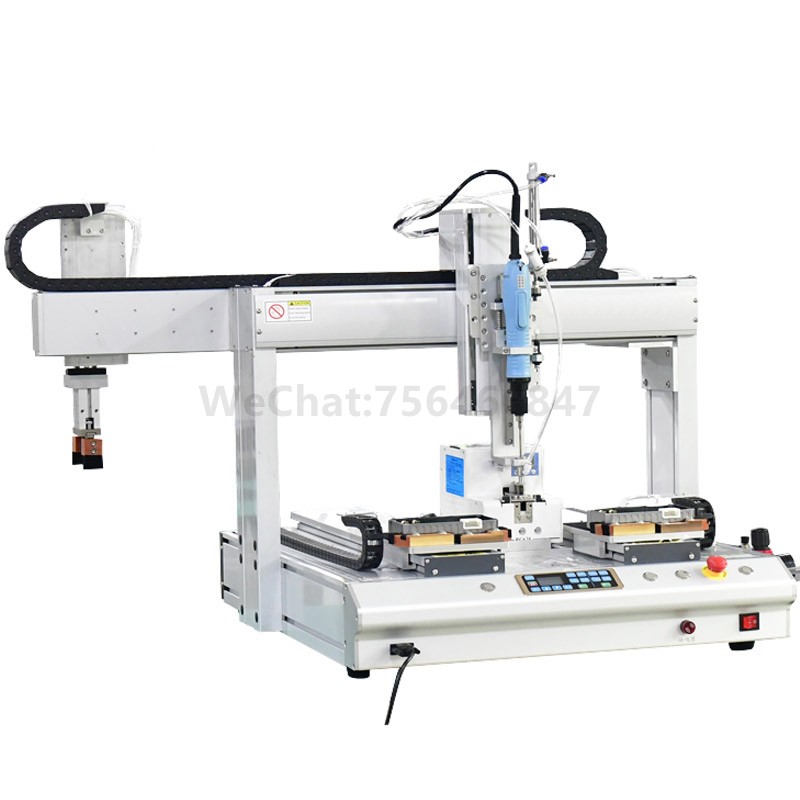

High Speed Automatic blankilocking screw machine/3 Axis automatic desktop robot screw driver /Screw Tightening Machine
Packaging & Delivery
Selling Units:Single item
Single package size:116X100X90cm
Single gross weight:120kg
Package Type:wooden box
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

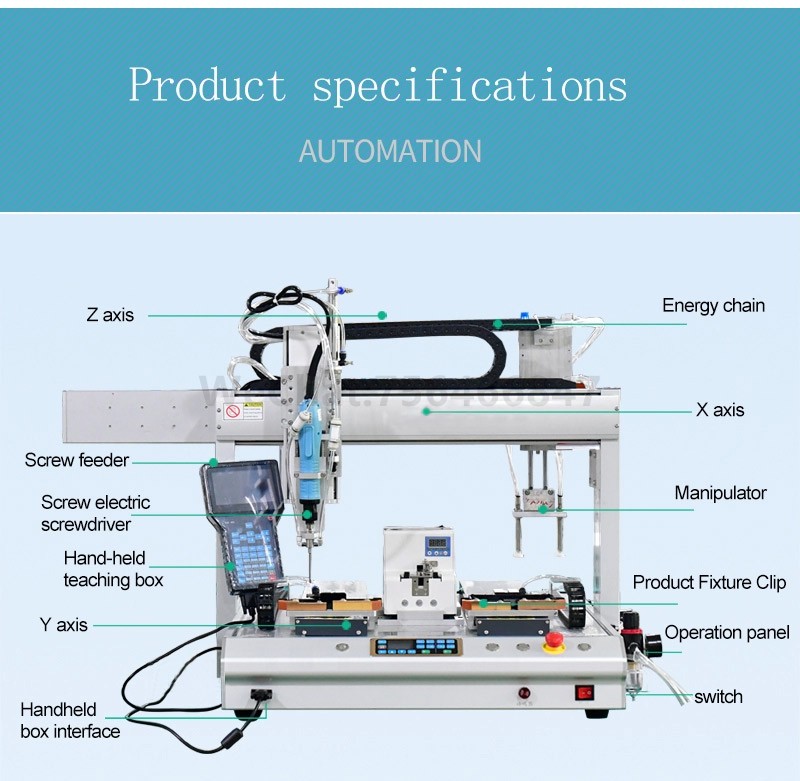

| Basic parameters | ||||
| Product number | L5551 | |||
| Control axis | Four axis | |||
| Effective itinerary | X axis | Y1 axis | Y2 axis | Z axis |
| 500MM | 500MM | 500MM | 100MM | |
| Transmission mode | X axis double guide rail + timing belt, Y / Z axis single guide rail + timing belt | |||
| Power source | Closed loop motor | |||
| Top speed | X, Y axis 500mm / sec, Z axis 300mm / sec | |||
| Repeat accuracy | ± 0.05mm | |||
| Maximum load | X / Y / Z-5kg / 5kg / 3kg | |||
| Control System | Three-axis control system | |||
| Power supply | AC110-250V 50-60LZ 350W | |||

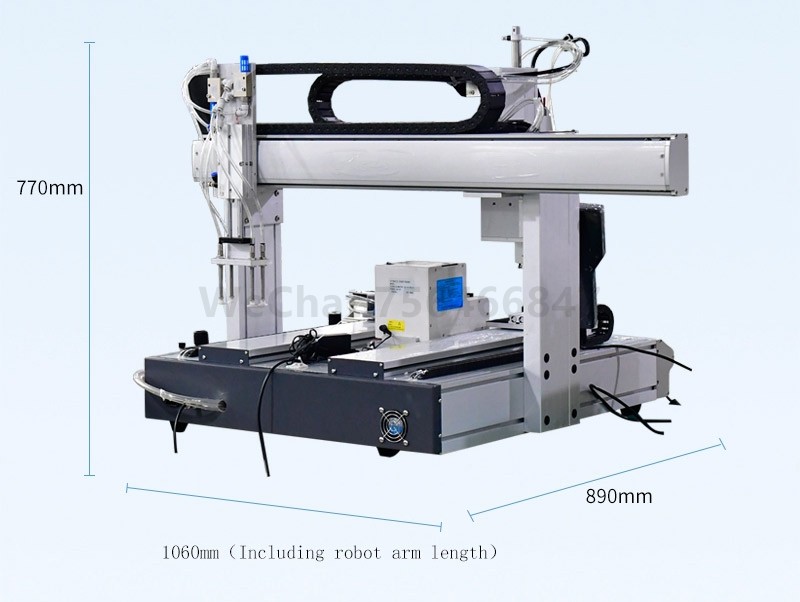

| Machine size | X axis | Y1 axis | Y2 axis | Z axis |
| 1060MM | 890MM | 890MM | 770MM | |
| Machine weight | 98KG | |||

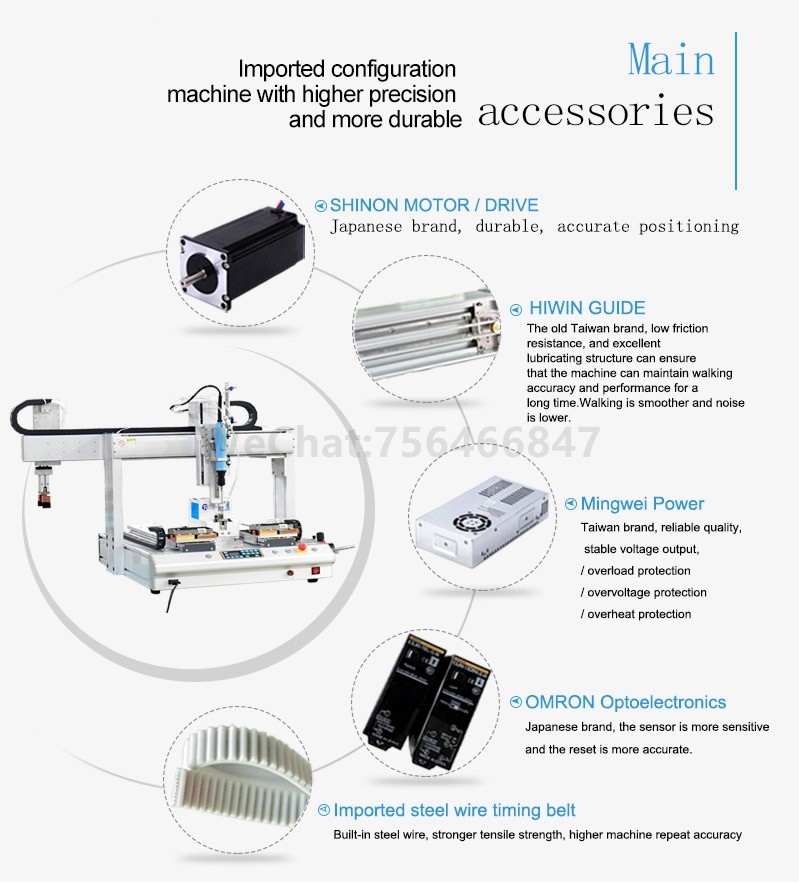

| Name | Brand | ||
| Stepper motor (Y axis) | Shinano Kenshi (Japan) | ||
| Stepper driver | YAKOTEC (China) | ||
| Closed loop motor (X / Z axis) | Leadshine(China) | ||
| Closed loop drive | Leadshine(China) | ||
| Linear Guides | HIWIN(Taiwan) XY / Double Rail, Z Single Rail | ||
| Control System | Hengkong (China) | ||
| Power supply | Mingwei (Taiwan) | ||
| Photoelectric switch | Omron (Japan) | ||
| Electric Approval | Kellett (Taiwan) | ||
| Feeder | Zeda (China) | ||
| Pneumatic original | SMC (Japan) |
